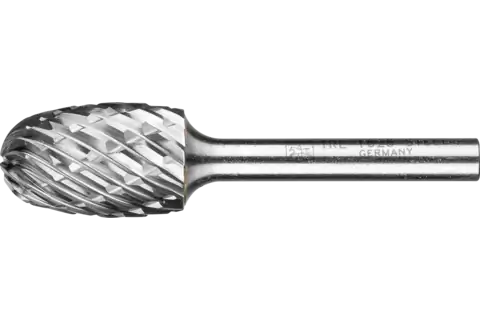

Tungsten carbide burrs for high performance, STEEL, oval shape TRE

Tungsten carbide high-performance burr STEEL oval TRE dia. 16x25 mm shank dia. 6 mm for steel

Item number:
21135287
EAN:
4007220092729
Technical information
Tungsten carbide high-performance burr STEEL oval TRE dia. 16x25 mm shank dia. 6 mm for steel

Cut
STEEL
Dia. external
16 mm
Dia. shank
6 mm
Length, cut
25 mm
Length, total
2,559
Length, total
65 mm
RPM from, hardened, heat-treated steels over 1,200 N/mm²
9000 RPM
RPM from, steels up to 1,200 N/mm²
9000 RPM
RPM to, hardened, heat-treated steels over 1,200 N/mm²
15000 RPM
RPM to, steels up to 1,200 N/mm²
15000 RPM
Radius corner design
6.5 mm
Packaging unit
1 piece
Description

With the innovative STEEL cut, PFERD has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option.

Oval burr according to DIN 8032.

Advantages
  • Up to 50 % higher stock removal rate when used on steel and cast steel in comparison to conventional cross-cut burrs.
  • Tangibly more aggressive, large chips and very good chip removal through the innovative tooth geometry.
  • Workpieces are protected through significantly lower thermal load.
  • The highly accurate concentricity enables impact­free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
Recommendations for use
  • To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
  • Observe the recommended rotational speeds.
  • To ensure cost­effective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.
Safety notes
  • The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.
Materials that can be worked
Case-hardened steels
Cast steel
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Steel
Steel, cast steel
Steels over 700 N/mm² (> 220 HB)
Steels up to 1,200 N/mm² (< 38 HRC)
Steels up to 700 N/mm² (< 220 HB)
Tool steels
Applications
Cutting out holes
Deburring
Leveling
Milling
Milling out
Surface work
Work on weld seams
Drive types
Drive spindle
Flexible shaft drive
Robot
Stationary machines
Straight grinder
Tool machine
PFERDVALUE

PFERDEFFICIENCY

recommends burrs with the STEEL cut for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.
product.aggregation.prv-eff
product.aggregation.prv-eff
product.aggregation.prv-eff
product.aggregation.prv-eff

PFERDERGONOMICS

recommends burrs with the STEEL cut as an innovative tool solution for comfort when working, with significantly reduced vibration and less noise.
product.aggregation.prv-ergo
product.aggregation.prv-ergo
product.aggregation.prv-ergo
